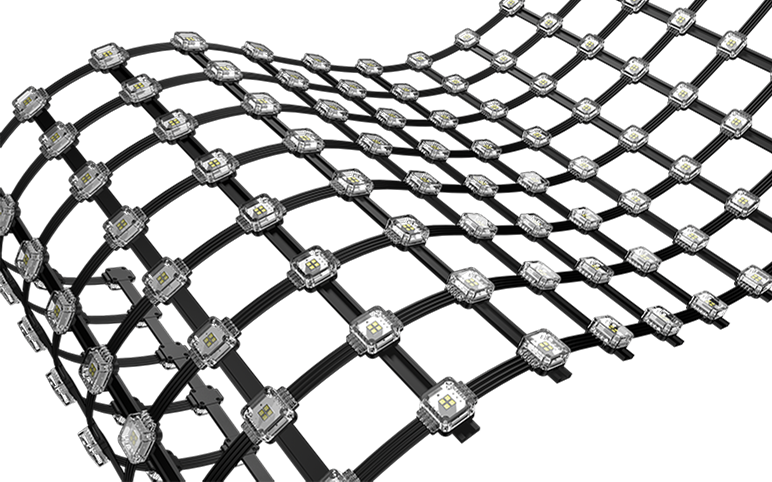

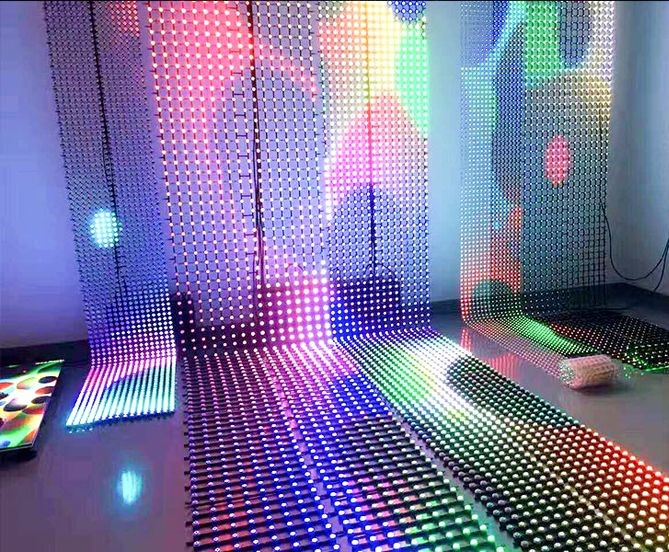

LC series is a unique flexible structure that enables panel to be curved, rolled up, hung up or folded to form versatile shapes. The uppermost 75% transparency rate makes the background clearly visible when the screen is off, and presents a special visual effect when the screen is on.
Product features

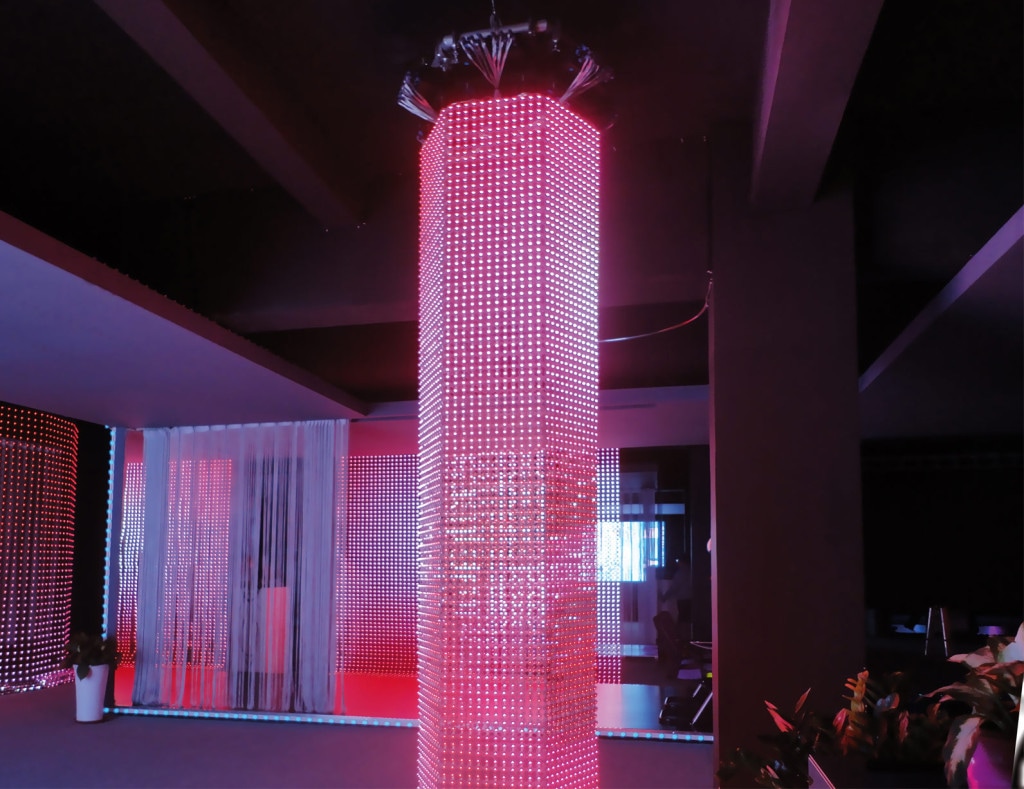

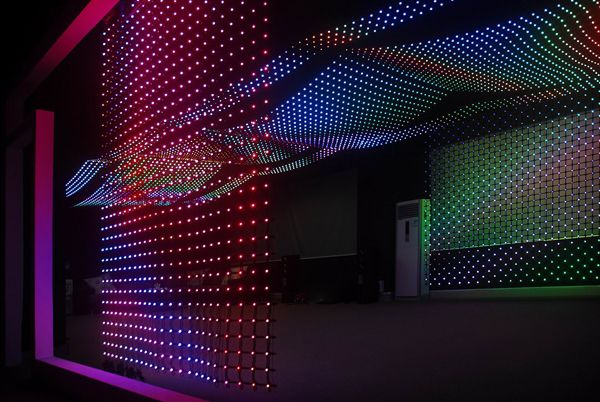

Application Scenarios
Outdoor buildings, Shopping malls, Large building façade, Glass buildings, High street.
SPECIFICATIONS
| Model | Eco-1 | Eco-2 | Eco-4 | Eco SM-1 | Eco SM-2 | Eco SM-4 | Eco LM-1 | Eco LM-2 | Eco LM-4 |
| LED Configuration (LEDs) | SMD3535 1 | SMD2727 2 | SMD2727 4 | SMD3535 1 | SMD2727 2 | SMD2727 4 | SMD3535 1 | SMD2727 2 | SMD2727 4 |
| Brightness(CD/dot) | 2.5 | 5 | 10 | 2.5 | 5 | 10 | 3.7 | 7.5 | 15 |
| The Rated Voltage(v) | DC7.5 | DC9 | DC15 | DC7.5 | DC9 | DC15 | DC7.5 | DC9 | DC15 |
| Power Consumption (W/d | 0.45 | 0.6 | 0.9 | 0.45 | 0.6 | 0.9 | 0.45 | 0.6 | 0.9 |
| Dot Size(mm) | 18 x 18 x 10.5 | 18 x 18 x 10.5 | 18 x 18 x 10.5 | 18 x 18 x 17.9 | 18 x 18 x 17.9 | 18 x 18 x 17.9 | 18 x 18 x 15.4 | 18 x 18 x 15. | 18 x 18 x 15.4 |
| Dot Weight(/Pixel) | <4.6g | <4.6g | <4.6g | <5 g | <5 g | <5 g | <5 g | <5 g | <5 g |
| Pixel Pitch | 35mm / 40mm / 55mm / 80mm / 100mm / 110mm / 160mm / Xmm | ||||||||
| Module Resolution | 8 x 100 dot | ||||||||
| Ingress Protection ( Front/ | IP66 | ||||||||
| Viewing Angle | 140°（H） / 140°（V） | 120°（H） / 120°（V） | |||||||
| Signal Format | BPR | ||||||||
| Gray Scale | 12 bit | ||||||||
| Colors | 68.7 Bilion | ||||||||
| Refresh Rate | 2000 Hz | ||||||||
| Working Environment | Temperature -40℃ ~ +75℃，Humidity10% ~ 90% RH | ||||||||
| Life Span | ≥100，000hours | ||||||||
| Certification | ETL TUV-EMC CE | ||||||||
